Heavy Duty Dual Output 4-pin Wiring Harness - Diode Dynamics

DD4093

M.R.P. ₹ 7,599.00 inclusive of all taxes
M.R.P. ₹ 7,599.00 inclusive of all taxes
Sale Contact Us to Order
Tax included. Shipping calculated at checkout.
Write a review

In stock
View full details

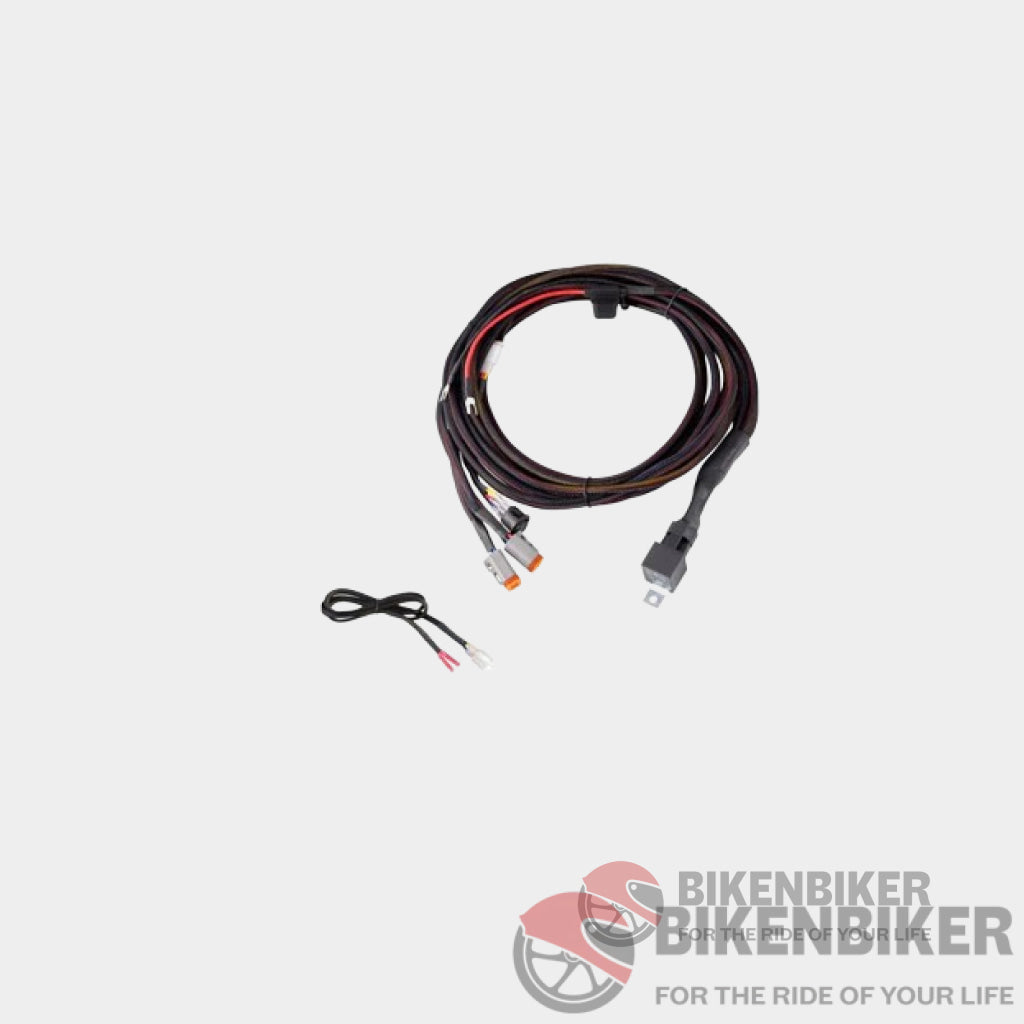

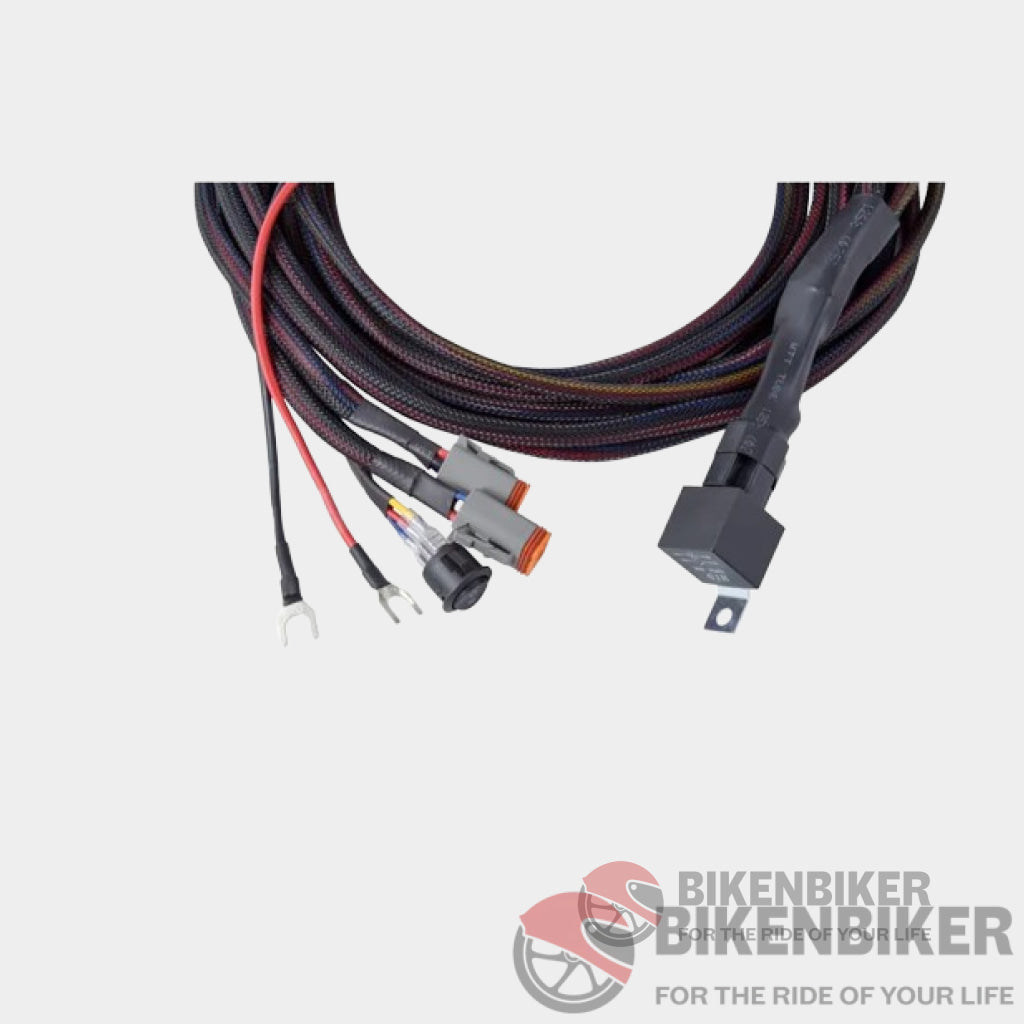

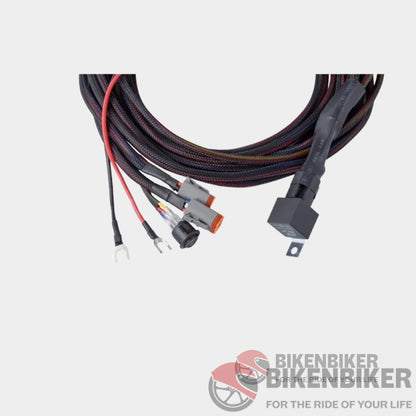

Heavy Duty Dual Output 4-pin Wiring Harness

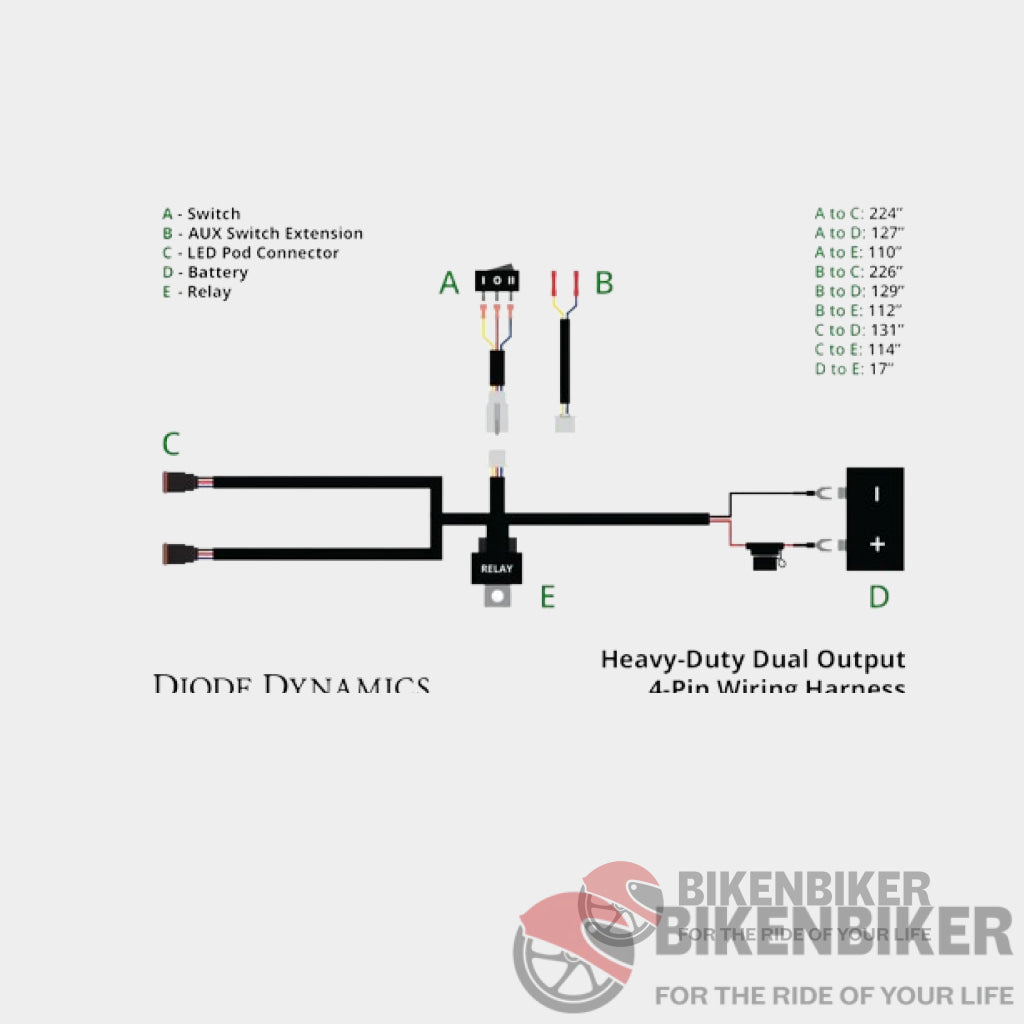

Stage Series. This harness is intended to be used with our Stage Series pods with backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a three-way switch to toggle between the backlight, off, and the main beam. This harness uses high capacity 14AWG wiring and Deutsch DT connectors for simple plug-and-play installation.

This harness safely powers up to 25A of auxiliary lamps. Please refer to the current draw data below.

  • C1 Sport: 1.2A
  • C1 Pro: 1.7A
  • SSC2 Sport: 0.6A
  • SSC2 Pro: 1.75A
  • SS3 Sport Mainbeam: 1.1A, Backlight: 0.03A
  • SS3 Pro Mainbeam: 2.7A, Backlight: 0.03A
  • SS5 Sport: 2.8A
  • SS5 Pro: 6.7A

Control through OEM Aux Switches. This harness includes an OEM aux switch adapter wire that allows you to control your lights using a factory-installed aux switch bank. Two switches will be used - one for the main beam, and one for the backlight. For those who don't have the aux switch bank, you will use the included toggle switch adapter wire to mount a switch.

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors, we assemble and engineer products in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

Features

  • Powers Diode Dynamics LED pods with backlight functionality.
  • Connects directly to the battery to power your LED pods.
  • High capacity 14AWG wiring.

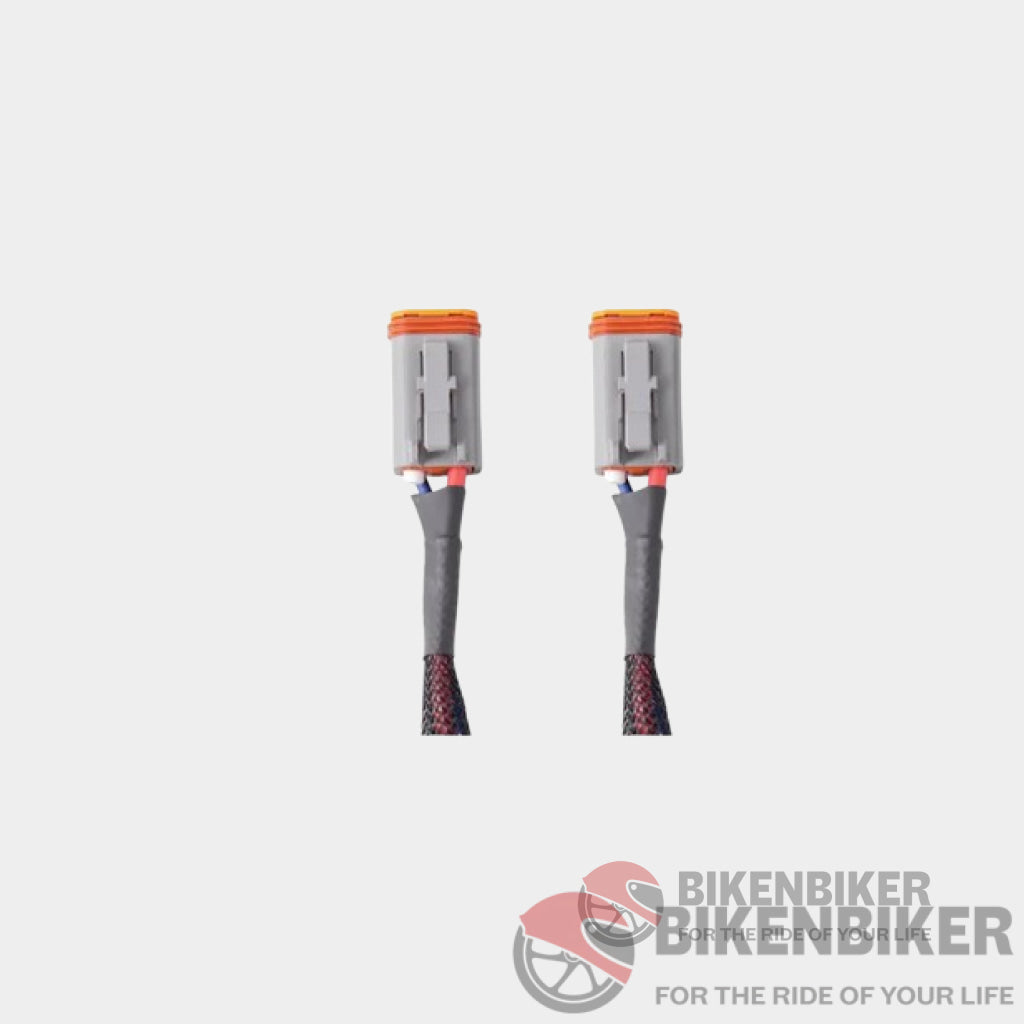

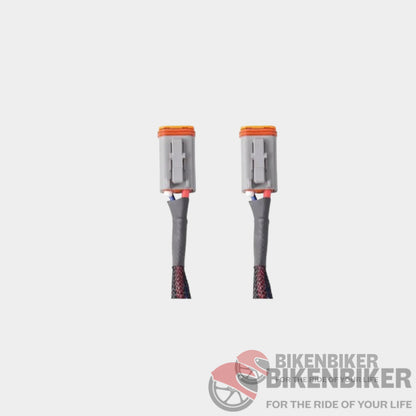

  • Dual Deutsch DT output connectors.
  • 30A waterproof fuse, and 60A 12V relay to safeguard the electrical systems in your pods.
 In the Box:
  • One (1) wiring harness
  • One (1) toggle switch
  • One (1) OEM aux adapter

Fitment

NOTE: This harness is intended to be used with our Stage Series pods with backlight functionality. If you are looking to power non-backlit Stage Series products, click here.

Brand - Diode Dynamics, USA




Country of Origin: China
Generic Name: MOTORCYCLE PARTS AND ACCESSORIES
Quantity: 1N
Country of Import: United States Of America
Warranty: THREE YEARS FROM DATE OF INVOICE
Importer Address: Diode Dynamics 3870 Millstone Pkwy St Charles, MO 63301 USA
