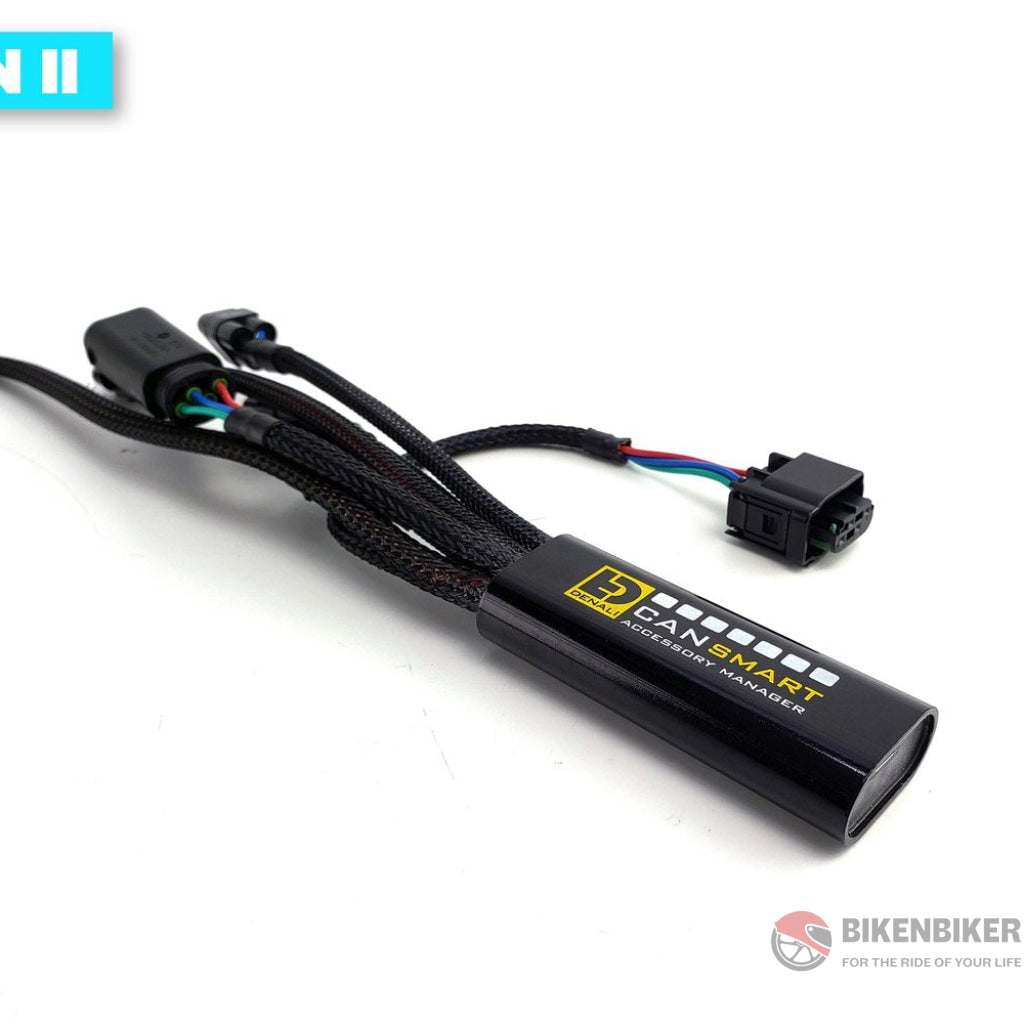

Plug-n-Play CANsmart Controller for BMW K 1600 Series & F 750 GS / F 850 GS & S 1000 XR - Denali

Available on Pre-order/Back Order. Check out how that works here

Harness the flexibility and intelligence of your BMW motorcycle’s CANbus electrical system to make installation of accessories drastically easier with the DENALI CANsmart™ Controller. The CANsmart provides for plug-and-play installation of up to four electrical accessories, all controlled through your BMW’s existing handlebar switches including the rotary “WunderWheel” multi controller. No more “tacked on” switches or confounding wire routing. In addition, because the CANsmart controls the power distribution functions, there’s no need to wire in bulky relays to control your accessories.

The CANsmart’s four dedicated circuits are pre-programmed to connect to and independently control two sets of auxiliary lights, an auxiliary horn, and an auxiliary brake light. Each accessory circuit is electronically fused and ready to use right out of the box. Free software (for Mac or PC) allows you to customize these circuits, but the default settings will be right for the vast majority of installations.

The two auxiliary light circuits enable independent adjustment of high and low beam brightness right from the vehicles WunderWheel. It also features a “flash to pass” and “strobe when horn active” setting that will strobe the auxiliary lights when you pulse your high beam switch or sound your horn. The feature-rich brake light circuit will transform a simple two-wire brake light into a smart brake light complete with running light, multiple flash pattern, and deceleration activated braking functionality. The horn circuit enables the addition of an auxiliary horn without having to add a relay and dedicated horn wiring harness.

Want more flexibility? We thought you might. You can set any of the four circuits to Simple Circuit Mode, which will disable all custom circuit settings to provide a clean switched 12V circuit to power an accessory of your choice. The electronic fuse is the only active setting so you can properly fuse your accessory.

The CANSmart is designed to provide a seemless installation for Denali products, with full wiring harnesses already included in the kit. This means that you only need to buy the LED light pods (See links in “Related Products” below), and connect them to the included harnesses.



Part No. - DNL.WHS.11702

Brand - Denali

Country of Origin: UNITED STATES OF AMERICA
Generic Name: Accessory Manager
Quantity: 1N
Country of Import: United States of America
Warranty: ONE YEAR FROM DATE OF INVOICE
Best Use Before: 10 years from date of manufacture
Importer Address: Big Bad Bikes Ground Floor No.3, 1st Main Rd, 4th Block, HBR Layout, Bengaluru, Karnataka 560043. Contact Customer Service Manager (at above address) Phone: +91 844 844 9050 Email: customercare@bikenbiker.com
