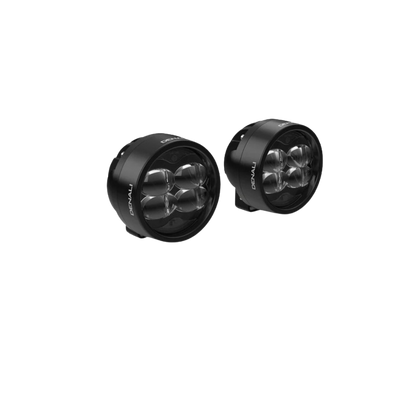

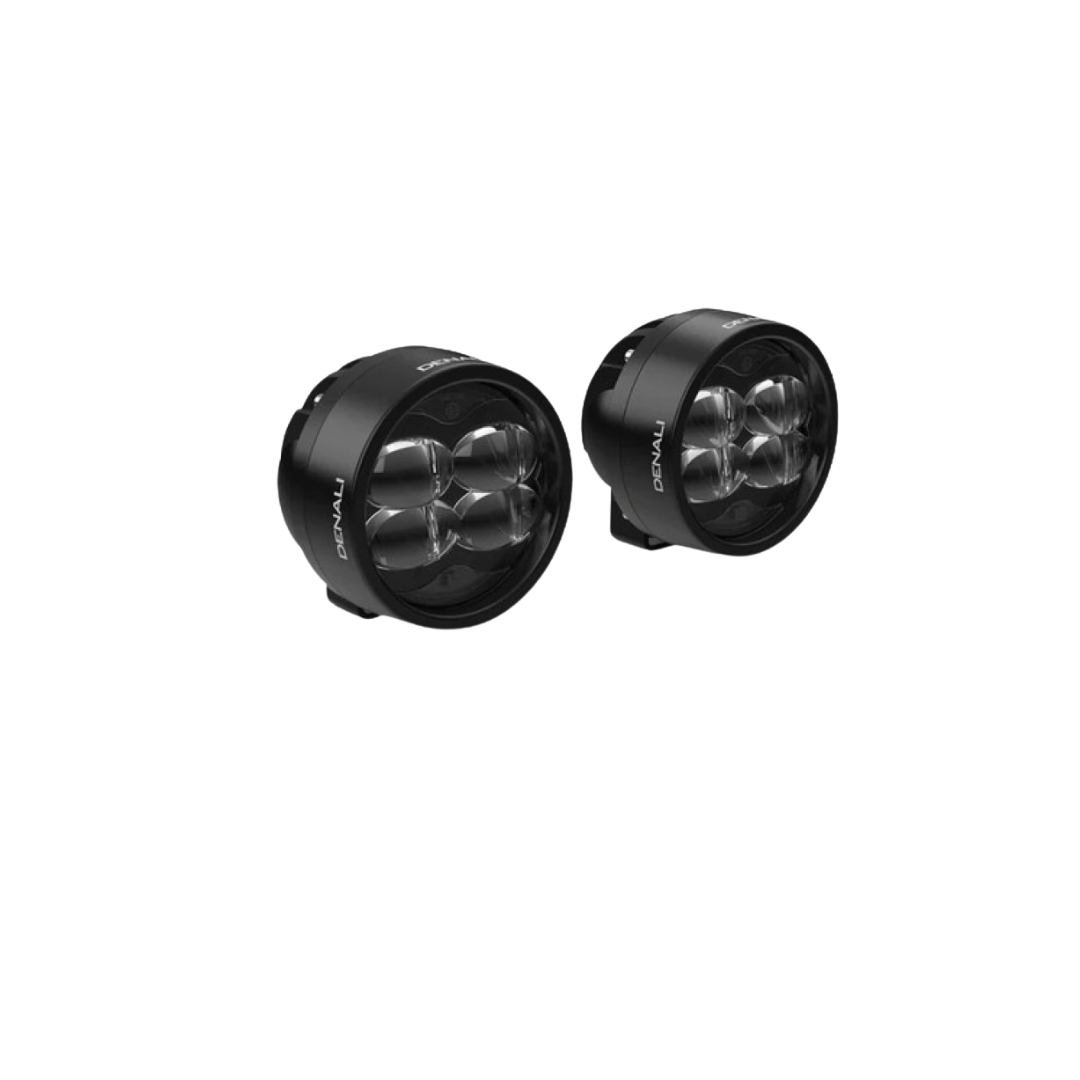

Denali D3 LED (Spread) Light Kit

Denali’s new D3 LED lights are built upon a decade of Denali innovation to deliver the highest performing street-legal fog light to hit the market. Denali’s proprietary fog optics were painstakingly engineered to reach the maximum allowable candela (beam distance) for each of the regulated lighting zones for both the North American SAE/DOT and European Union ECE regulations! The result is a truly unique lens that performs as well as it looks, capable of generating a super-crisp fog beam that is 450 feet long by 300 feet wide at 1 lux (per pair)! No other street-legal fog light even comes close!

The D3 housing is only 90mm round and 76mm deep. A pair of D3s feature High-Intensity Series Cree LEDs outputting 5600 lumens. The DataDim™ 3-wire smart-dimming technology is compatible with all Denali dimming controllers. All Denali housings are IP67 waterproof & submersible, making sure you’re ready for any adventure that comes your way! These DrySeal™ Submersible Waterproof lights can withstand the most extreme environments. The Impact PC™ Polycarbonate bezels won’t crack, fade or corrode like traditional aluminum bezels.  The Impact PC™ corrosion proof bezel ensures your lights will continue to look great even after repeated stone and debris impacts. LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating. Low profile mounting brackets with stainless steel hardware included.

Choose to add a set of amber or selective yellow lenses (available separately) to achieve greater performance in adverse weather conditions or to make your vehicle significantly more visible to other motorists on the road!

More Flexibility, Maximum Control – Denali has expanded on their standard light kit to deliver a customizable package that allows you to choose the best harness and lighting control option for your vehicle on your budget! Select from the options below to learn more about each of Denali’s wiring and switching options. Please be sure to add one of these options to your light pods to complete your Denali lighting kit!

Standard Powersports Harness – Robust, inexpensive, low-profile waterproof switch – the best option for a basic single intensity install

Standard Automotive Harness – Robust, added length, and a flush mount illuminated rocker switch for dash mounting

Premium Powersports Harness – Over molded wire, and a premium illuminated switch with handlebar mounting kit

DataDim Dual-Intensity Controller – Add this clever dimmer module to any of the above harnesses to enable your lights to change intensity in sync with your factory high beam switch!

DialDim Lighting Controller – The top dog in LED lighting control allows you to independently turn on/off and dim two sets of lights from a single halo dimmer switch and unlocks heaps of bonus features like high/low sync, strobe with horn, flash with signal, cancel with signal, electronic fuse setting and even doubles as a battery voltage monitor!

And last but not least Denali also makes a complete accessory manager (The CANsmart Controller) that has dozens of customizable settings for controlling LED lights but can also be used to power and control any electrical accessories from lights and horns to heated grips, dash cams and GPS units.

Denali’s D3 is also available in their signature TriOptic™ beam system that provides a spot and hybrid beam option (in the same kit) for drivers wanting uncompromised light output when you need it most. Shop Denali D3 SPOT/HYBRID

Highlights

137m beam distance & 91m beam width with a pair
5600 raw lumens per pair
Total load 80W, 6.6 Amps

Required Accessories – Make sure you choose an appropriate wiring harness (see the suggestions listed above) to go along with these lights.

Product Specifications

Size per pod: 90mm round x 76mm deep
Power Draw: 40 Watts / 3.3 Amps per pod; (80 Watts / 6.6 Amps per pair)
Raw Lumens: 5600 per pair (2800 per pod)
LED per pod: (4x) 11 Watt Cree XP-P LEDs

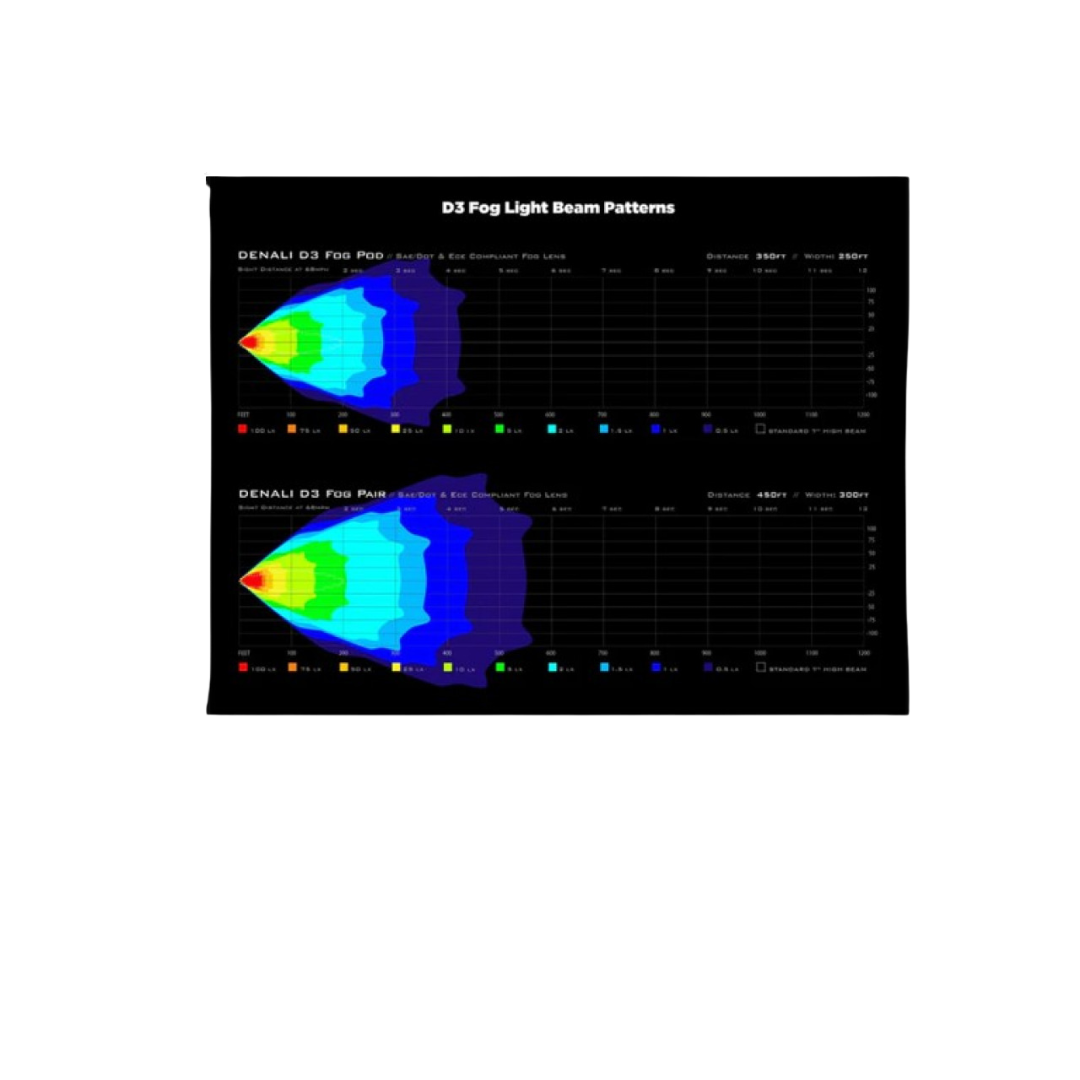

Beam Performance (pair):
Beam Distance (at 1 lux): 450 feet (137 meters)
Beam Width (at 1 lux): 300 feet (91 meters)
IP67 Waterproof & Submersible
DataDim™ Compatible: Yes

What’s in the box?

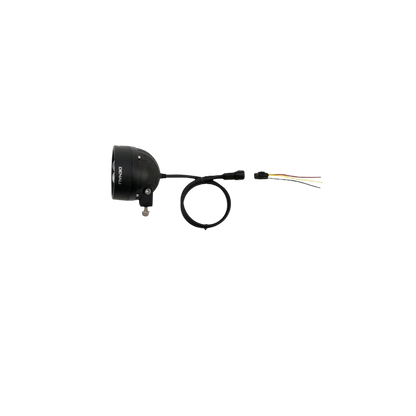

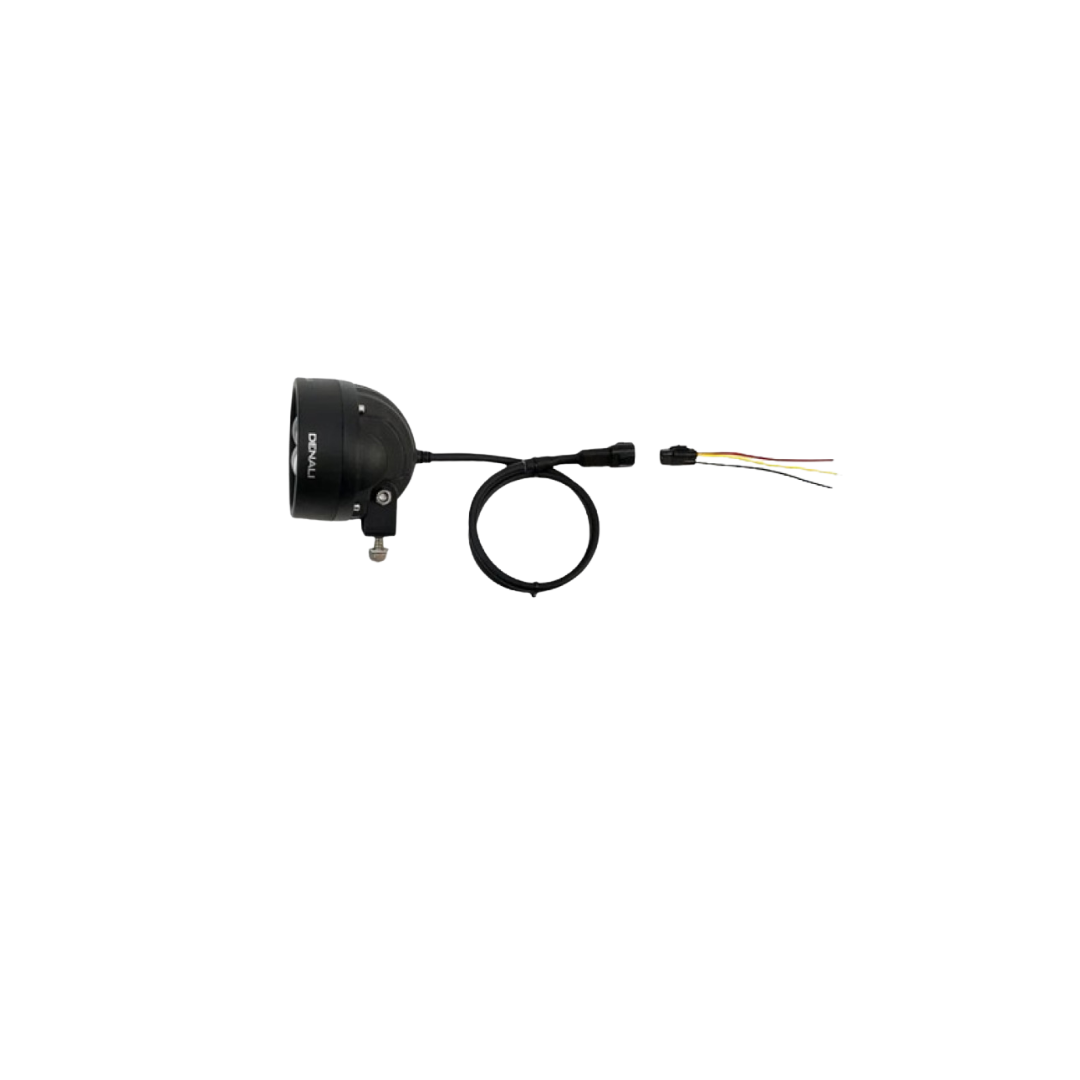

Denali D3 LED Fog Light Pod x 2

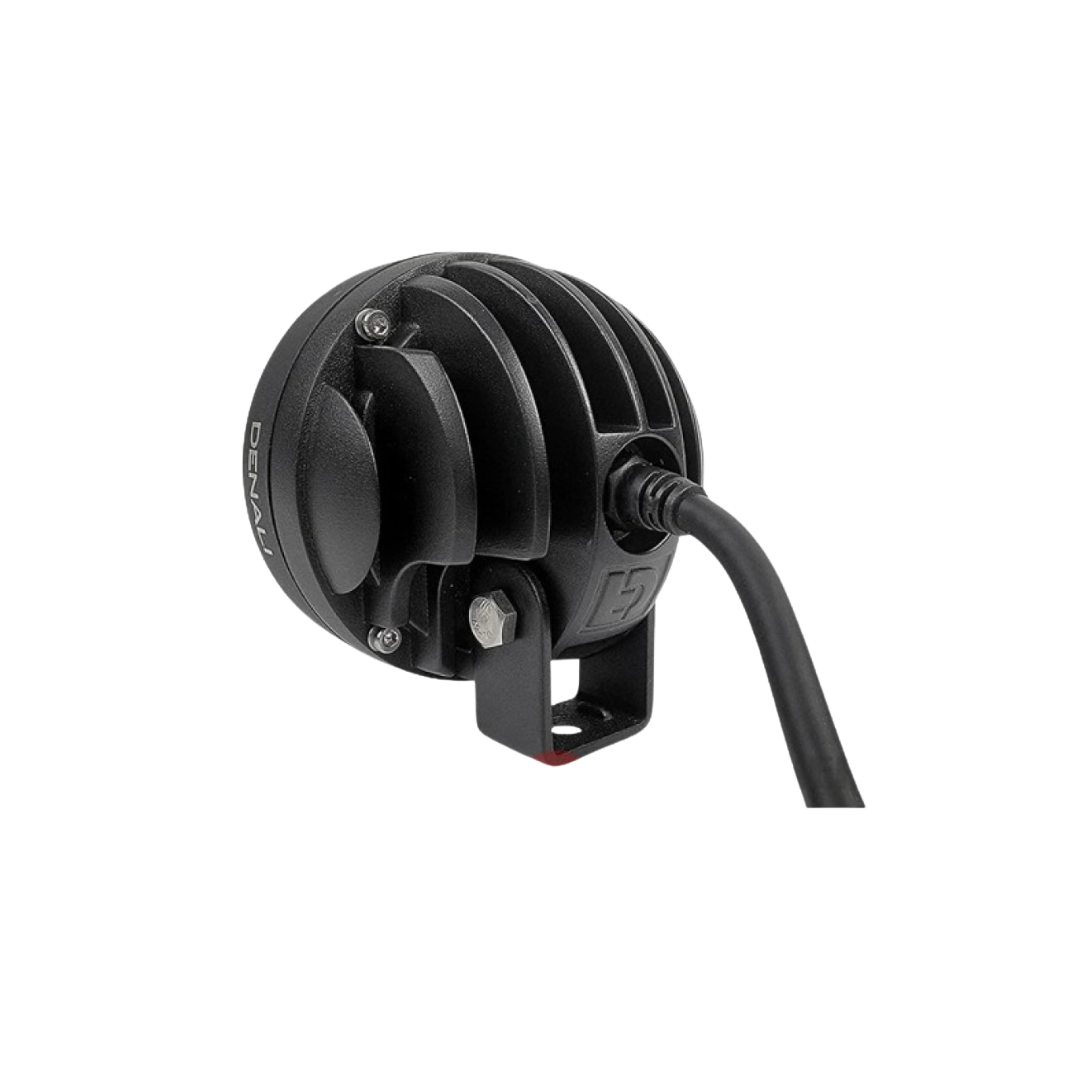

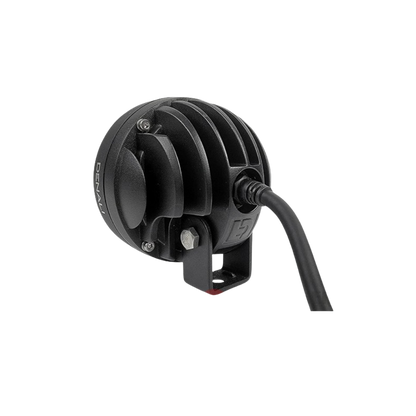

Hinge Mounts with M8 Stainless Steel Hardware x 2
Wiring Pigtail x 2
Mounting Instructions

Brand - Denali

Part No. - DNL.D3.051.2

Country of Origin: SOUTH KOREA
Generic Name: MOTORCYCLE PARTS AND ACCESSORIES
Quantity: 2N
Country of Import: UNITED STATES OF AMERICA
Warranty: ONE YEAR FROM DATE OF INVOICE
Importer Address: Ground Floor No.3, 1st Main Rd, 4th Block, HBR Layout, Bengaluru, Karnataka 560043
