Note:

• Fits only in combination with 41873-200
• Connects ENGINE GUARD TO TANK GUARD

The rear, free end of the original engine protection bar for the Adventure has no additional support against the frame. It thus represents the Achilles heel of the engine protection bar. In the event of a crash or a fall it tends to give way because the forces are not immediately intercepted. This brings the threat of damage to the valve cover.

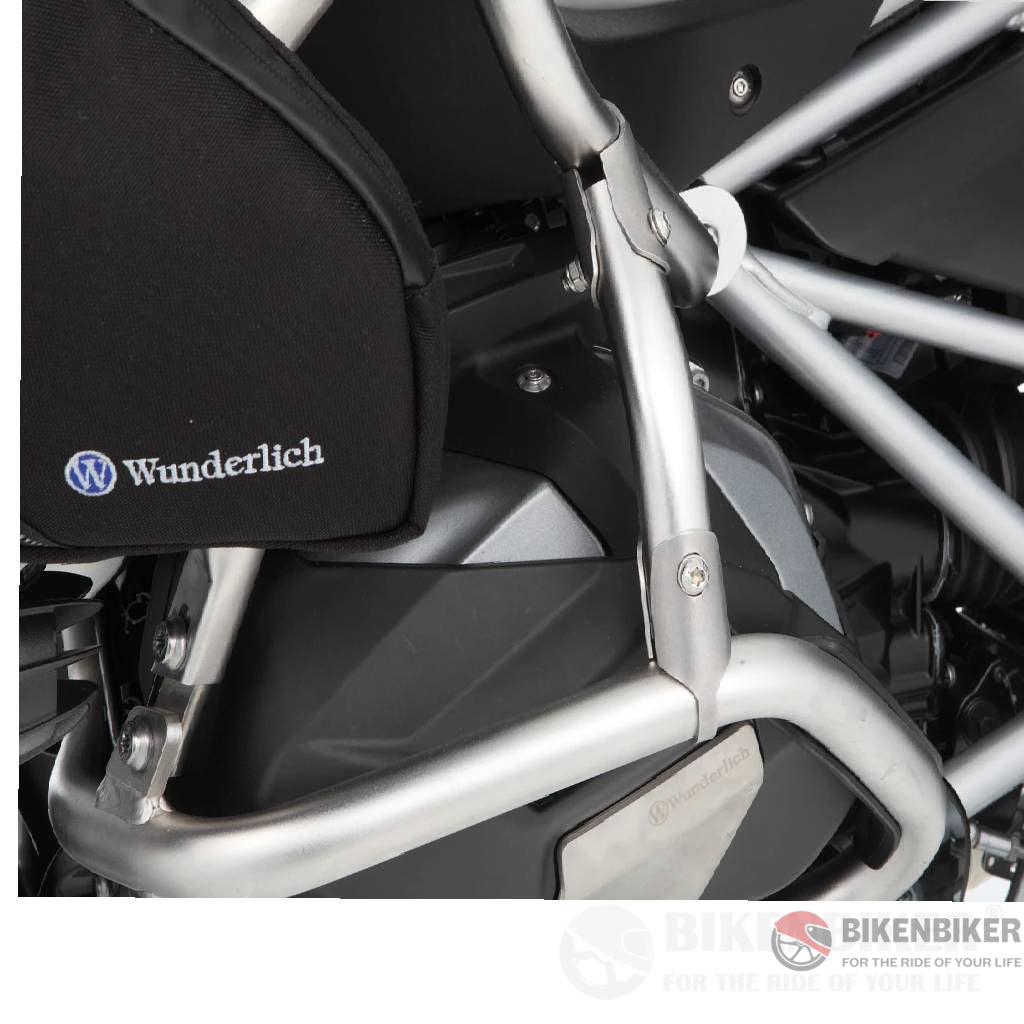

Our reinforcement bar reliably resolves this problem. It connects the rear, free end of the engine protection bar to the Wunderlich tank protection bar 41873-200. This means the effective forces are also absorbed via the bar at the suitable points. This measure therefore prevents the engine protection bar giving way and reduces the risk of damage to the valve cover. The construction of the reinforcement bar is designed so that its curving form ensures the dissipation of load spikes.

Precisely formed on CNC pipe bending machines, cleanly welded. The reinforcement bar integrates into the design of the original engine protection bar.

Increases passive safety for rider and machine.

The facts:

Function

• Reliable protection in the worst case scenario
• Distributes the effective forces over an additional attachment point
• Dissipates load spikes
• Quick and easy to install thanks to the smart connector to the original crash bar
• Perfect fit
• Set for right and left side
• Increases passive safety for machine and rider

Technical info

• Stainless steel, glass bead blasted and electro polished
• Pipe diameter 25 mm
