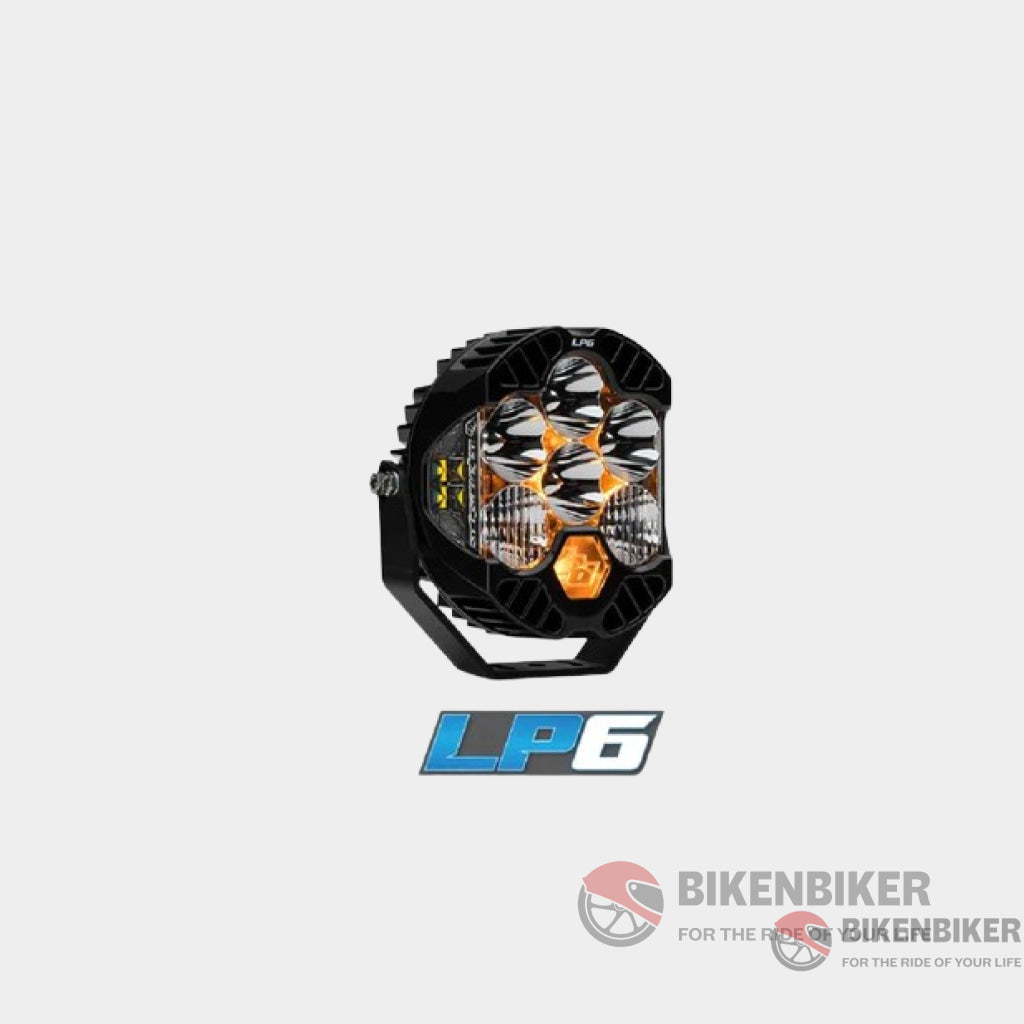

Aux LP6 Pro Led 10300 Lumens (PCS) Light - Baja Designs

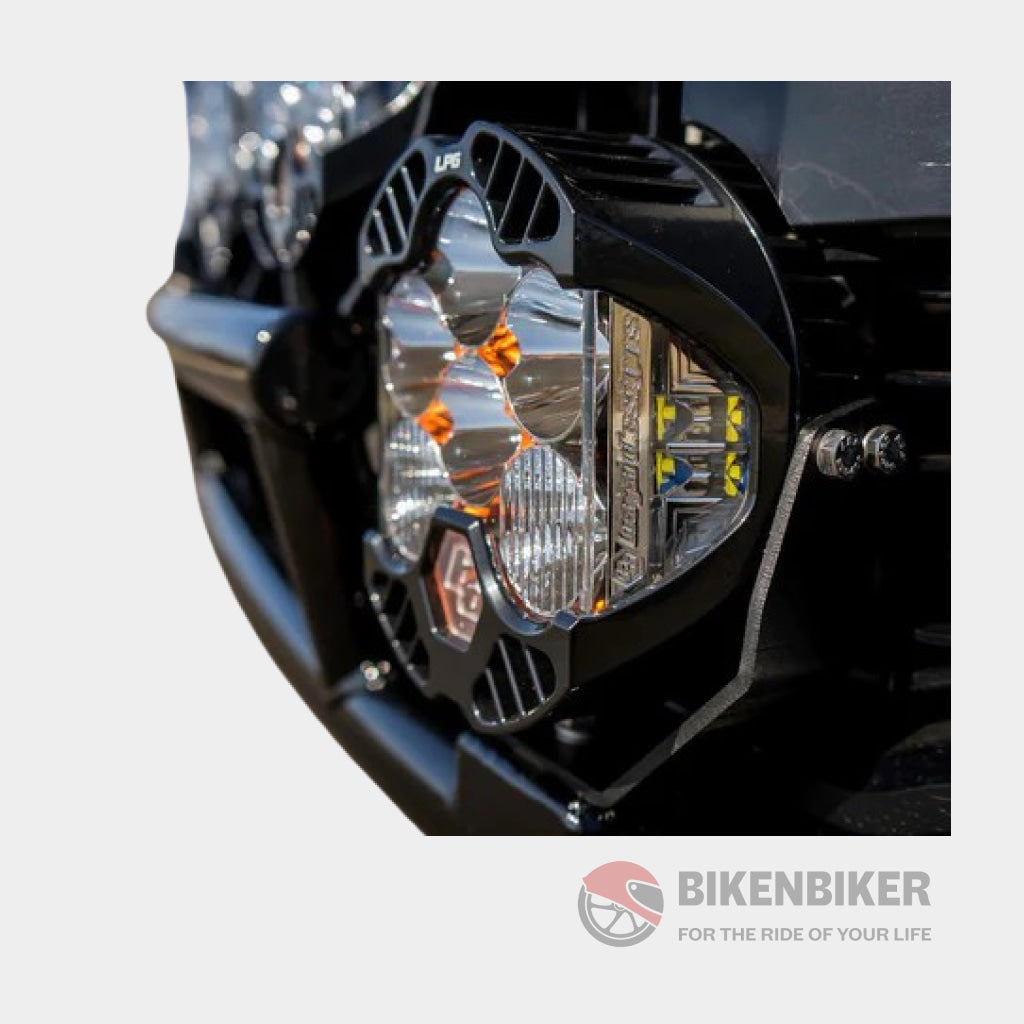

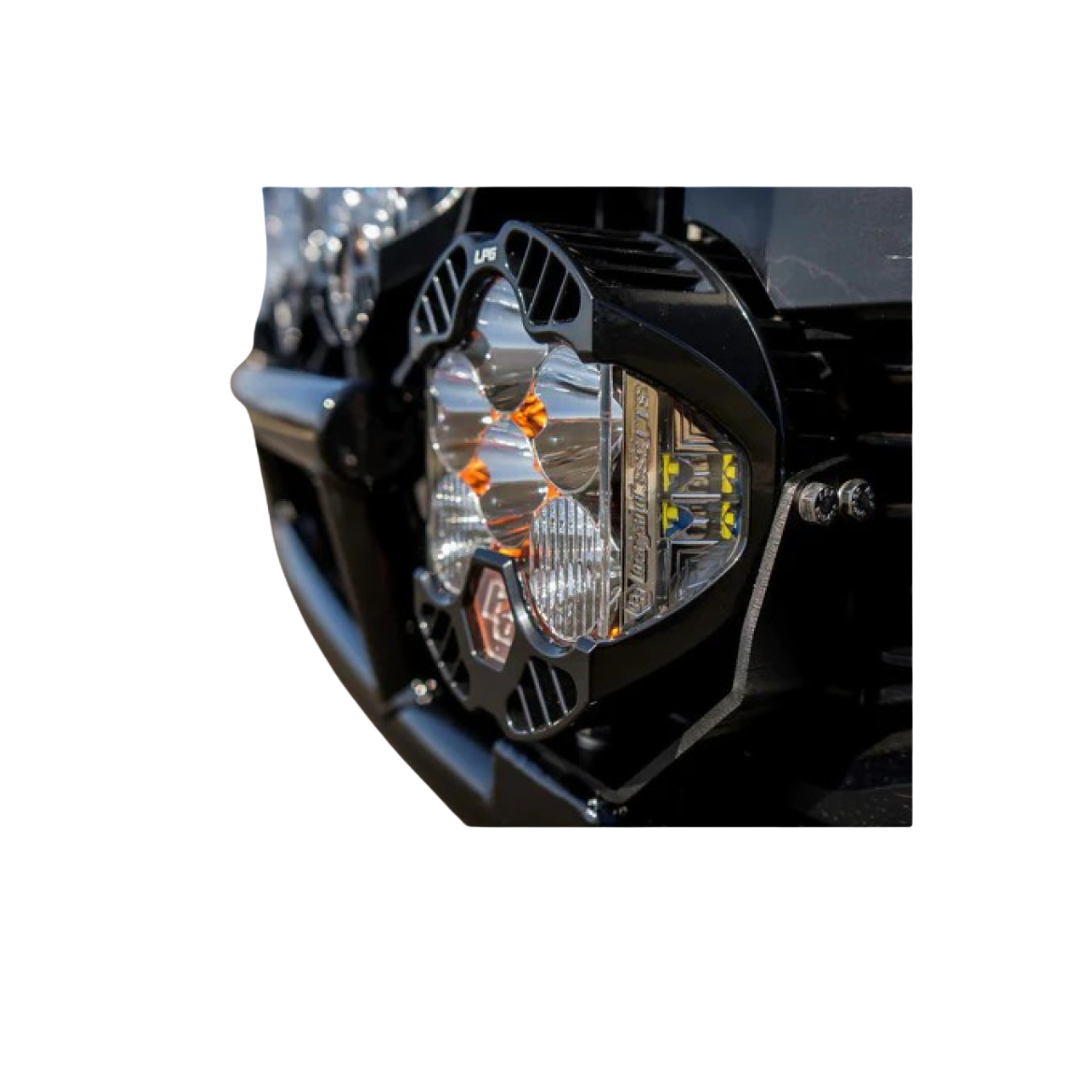

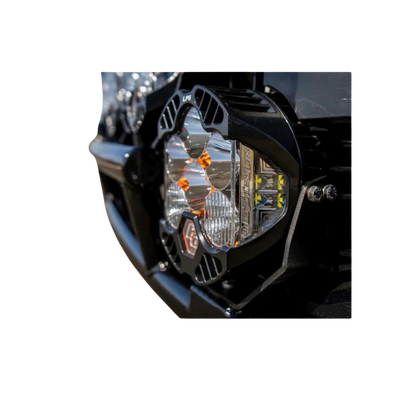

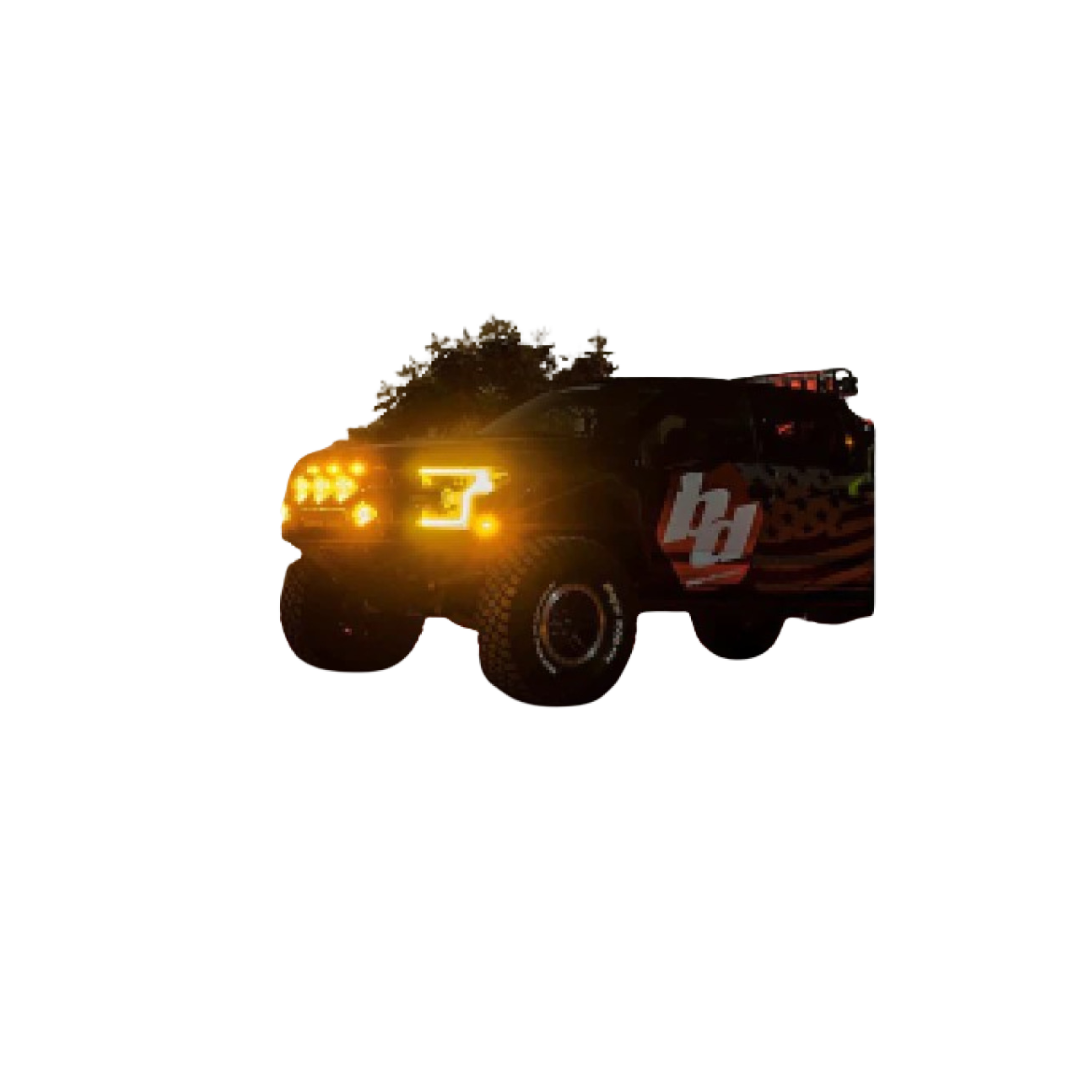

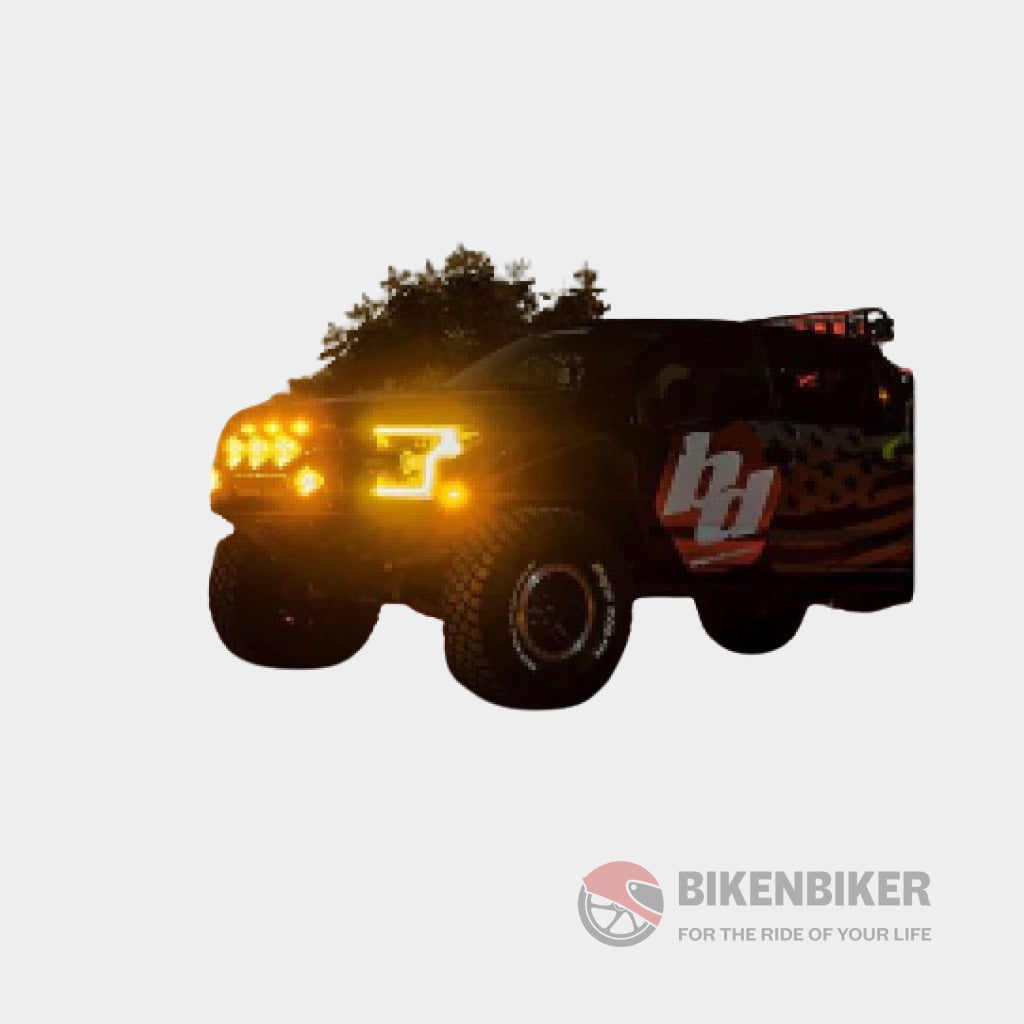

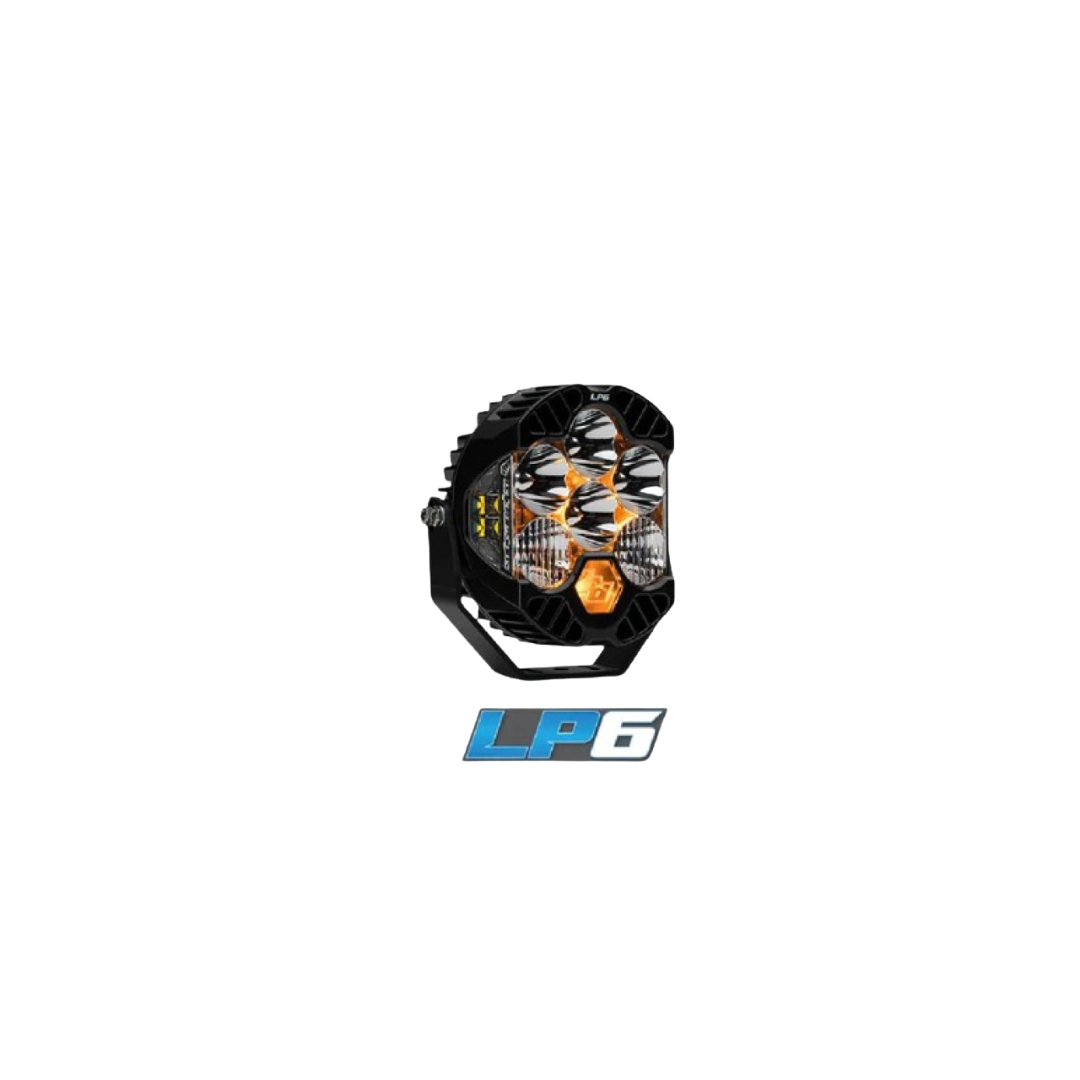

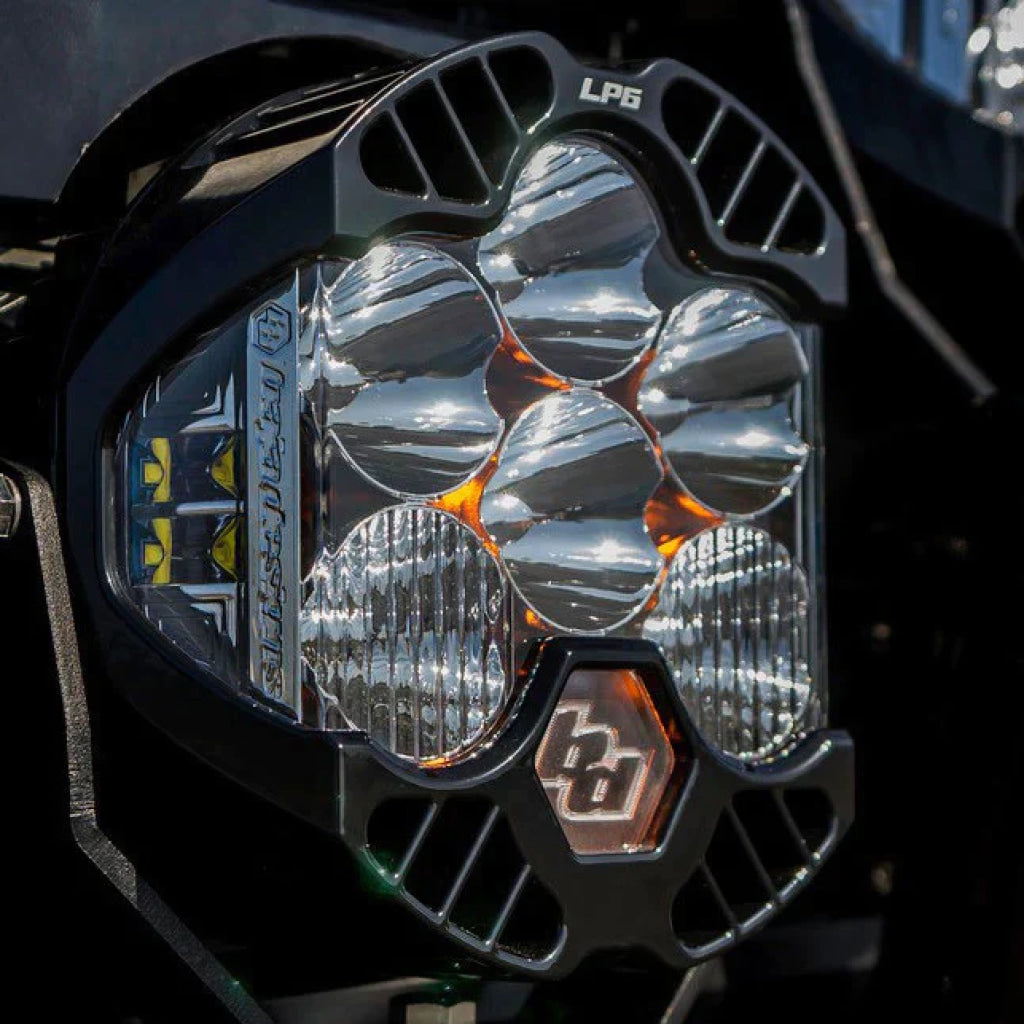

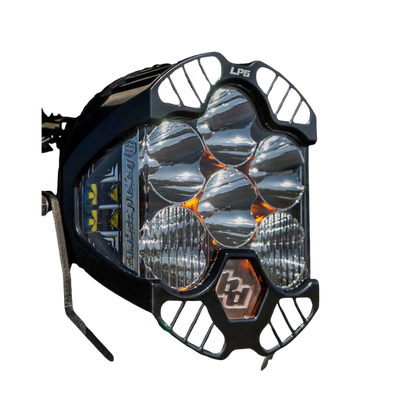

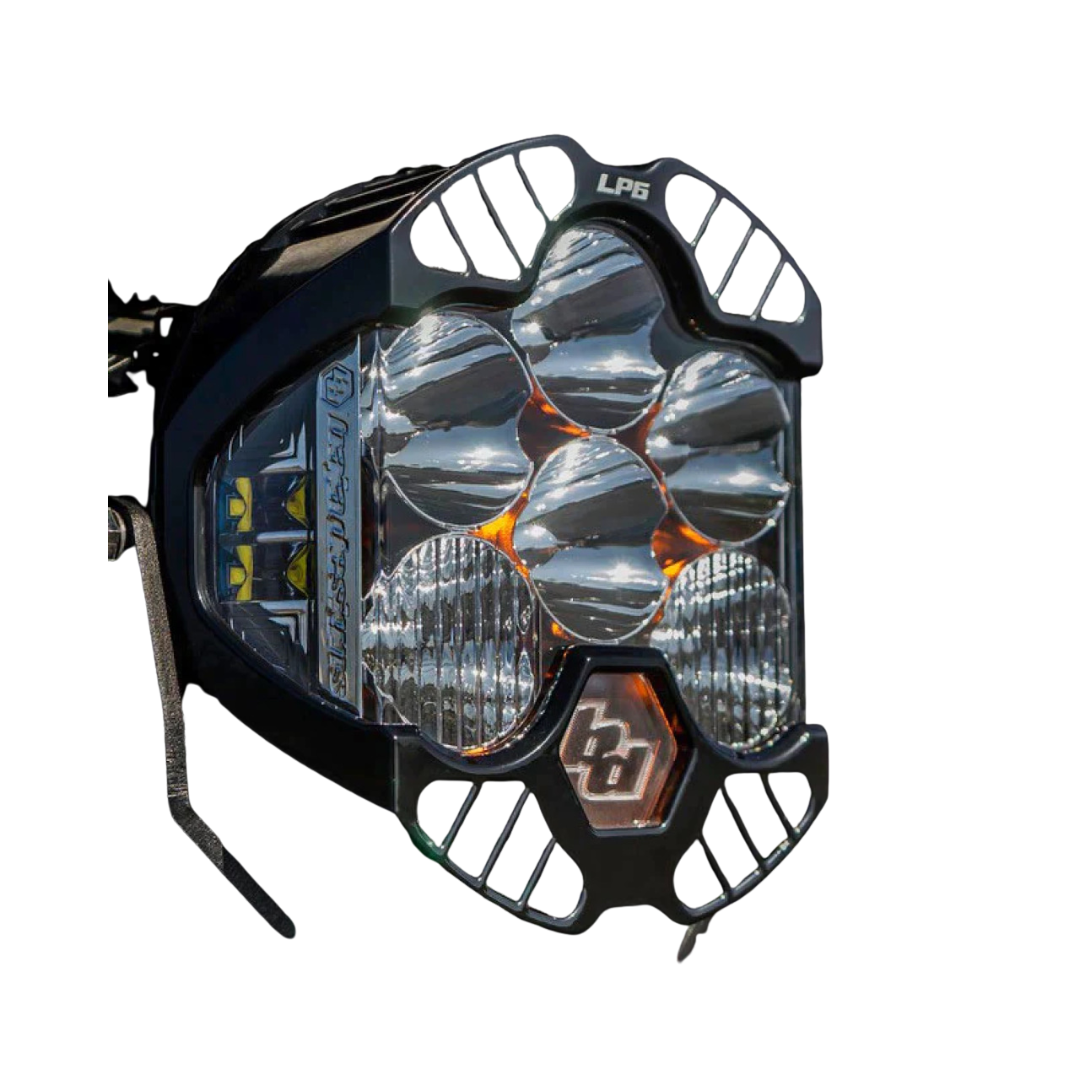

The LP6 Pro is a 6-inch powerhouse featuring a total of 11,225 total lumens and of 200-degree spread of usable LED light thanks to the dedicated peripheral lighting of our patented Integrated Peripheral Technology (IPT). To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance. With an amber daytime running light, low power, and high power mode, the LP6 easily fulfills all your lighting needs.

Choose from a variety of patterns to suit your needs:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3).

Spot: A longer and narrower 8-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5).

Depth	82mm
Height	165mm
Length	165mm
Weight	1.9Kg

Amperage Rating (A)	7.500
Average Rated Life (hr.)	49,930
Backlight Amperage Rating (A)	0.300
Backlight Wattage (W)	4.140
Beam Pattern	Driving/Combo
Bezel Material	Billet Machined Aluminum
Brightness (Lumens)	11225
Description	Driving/Combo; Clear
Housing Color	Black
Housing Material	Hard Anodized Machined Aluminum
Lens Color	Clear
Lighting Modes	Hardcoated Polycarbonate
Light Quantity	1
Lens Material	High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity	6
Lighting Type	LED
Lighting Technology	Forward Projecting
Mounting Hardware Included	Yes
Mounting Hardware Material	Stainless Steel
Overvoltage Protection	Built-In
Product Type	LP6 Pro LED Light Pod
Secondary Amperage Rating (A)	1.000
Secondary Brightness (Lumens)	1972
Secondary Light Quantity	4 LEDs
Secondary Lighting Type	LED
Secondary Lighting Technology	Integrated Peripheral Technology (IPT)
Secondary Wattage (W)	15
Terminal Connector	DT06-4S Deutsch
Terminal Type	Mating Connector
Universal or Specific	Universal
Wattage (W)	103.500
Wiring Harness Included	No



Brand - Baja Designs

Country of Origin: UNITED STATES OF AMERICA
Generic Name: Auxiliary Lights
Quantity: 1N
Country of Import: UNITED STATES OF AMERICA
Warranty: THREE YEAR FROM DATE OF INVOICE
Best Use Before: 10 years from date of manufacture
