Off Road Eng Bar Reinforecement - Wunderlich

Right on time for the launch of the 40 Years GS Edition BMW models “Edition 40 Years GS”, we’ve issued the matching compound strut wich perfectly integrate in the colour scheme of the “Edition 40 Years GS”.

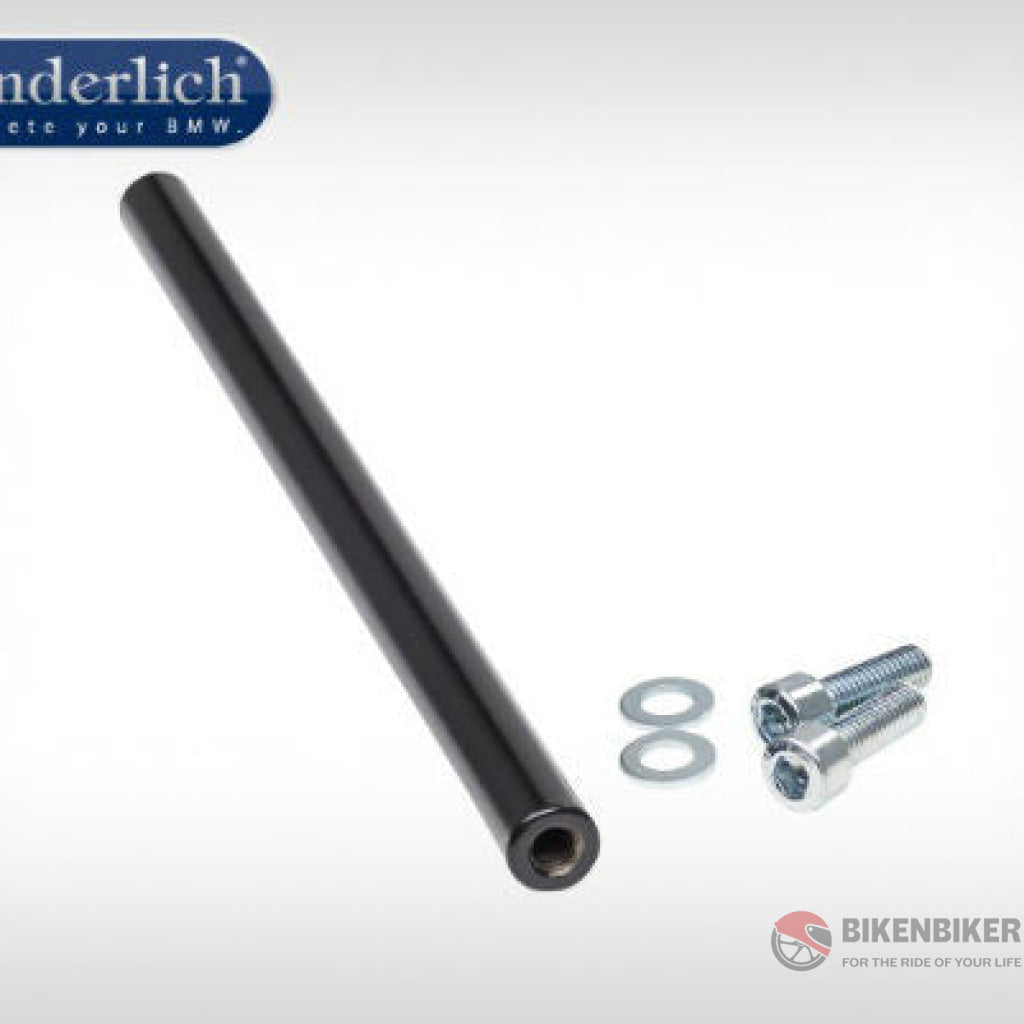

The compound strut functions as a connector for both the right and left engine protection bars. It runs in front of the alternator cover and screws directly onto the bore holes for this together with the bars. The strut incorporates an M8 threaded insert. The necessary screws and disks are included in the pack.

Thanks to the compound strut, the effective forces in the event of a crash are also transferred from a protection bar on one side to both sides. Pressure and tensile forces are thus distributed across both sides. The forces that effect the engine via the bar composite are optimally distributed and greater damage can thereby be avoided.

 Function

• Enhanced protection effect thanks to the greater stiffness of the compound structure
• Equal, optimal distribution of forces to the protection bars on both sides via the compound strut
• Minimal weight

Technical info

• Material: Stainless steel
• Diameter: 15 millimetres
• Length: 250 millimetres

BMW R1200 GS LC (2017-)
BMW R1200 GS LC (2013 - 2016)
BMW R1250 R (2023-)
BMW R1250 R (2019-2022)
BMW R1250 GS (2019-2023)

Brand - Wunderlich
