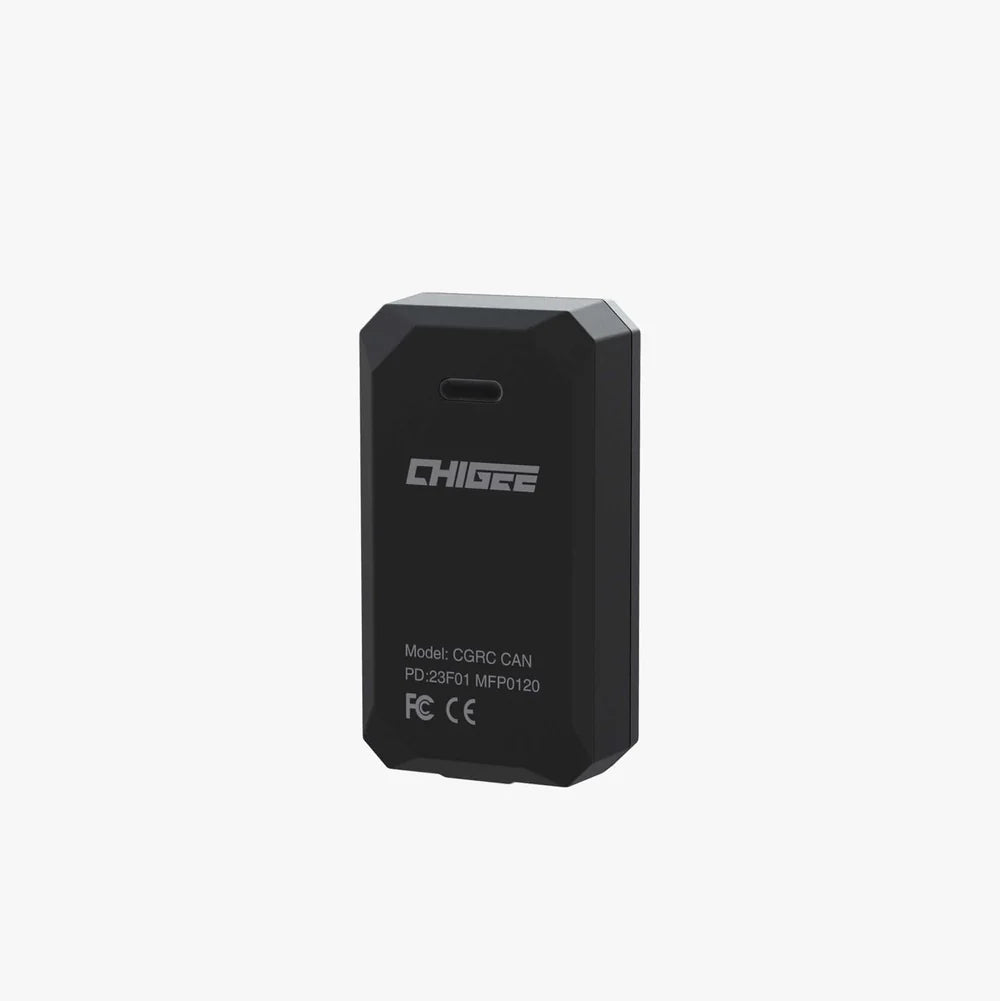

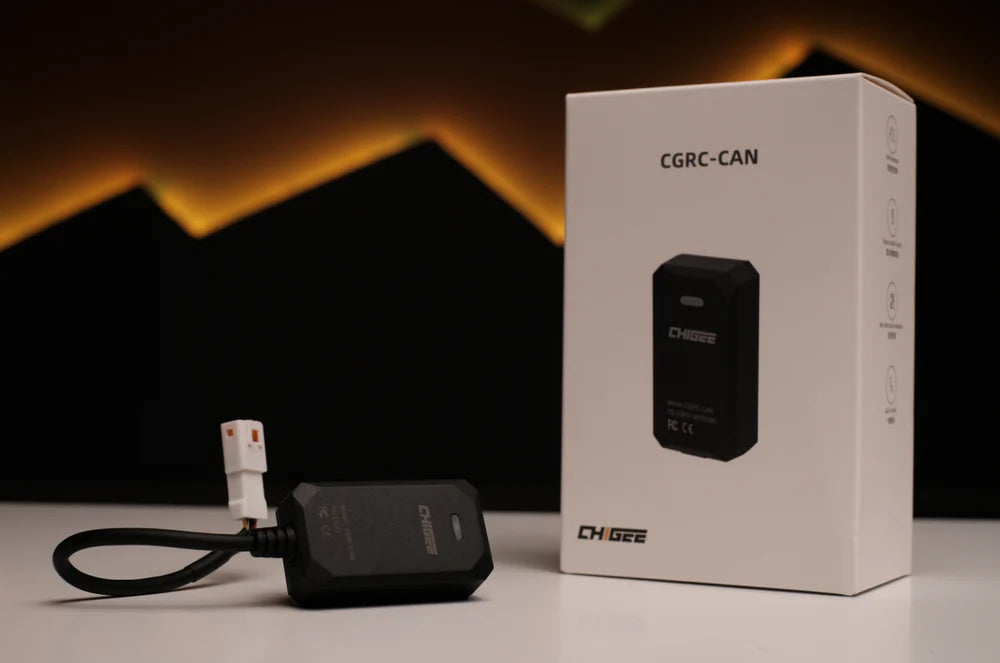

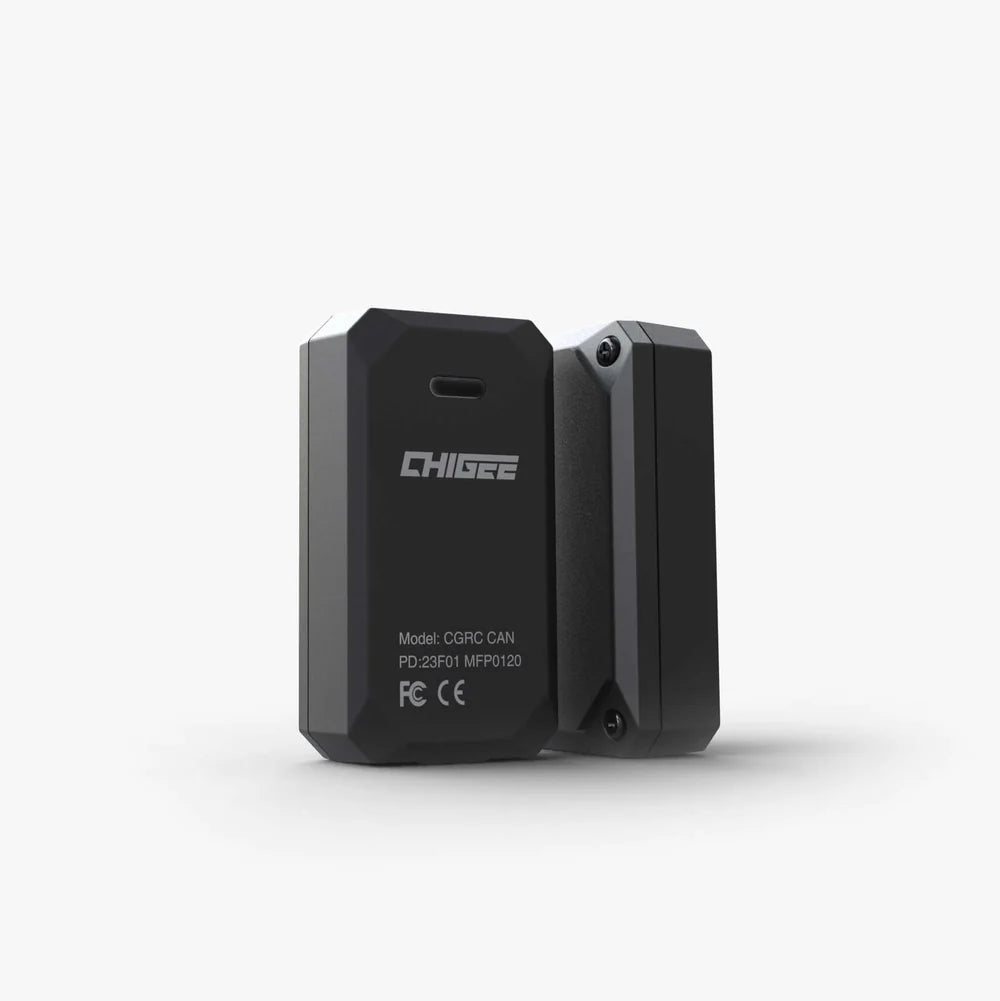

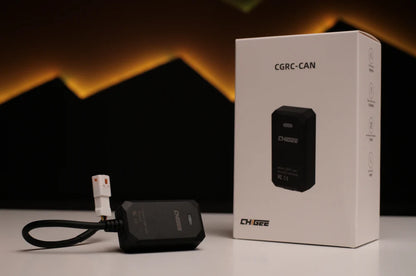

CGRC CAN Wonder Wheel Control- Chigee

During setup, all you need to do is plug the CGRC CAN into one of two module interfaces: either the 4-pin port for the RDC module, which handles tire pressure monitoring, or the 8-pin port for the DWA module, which is the bike's anti-theft alarm system. While our online guides recommend certain purchases, they are suggestions for reference only. If upon inspecting your BMW, you find that a DWA or RDC module would allow for easier installation, feel free to purchase the appropriate pin connectors based on your specific bike's fitment.

※Important Notice for RT/K Series with Mechanical Instruments(2011-2021 K1600 series / 2020 R1250 RT / 2016-2017 R1200 RT): Simultaneous control occurs only in the Secondary Settings Interface of the BMW. If this limitation is acceptable to you, the CGRC CAN is a suitable option. If not, we recommend choosing the CGRC PRO Remote for a smoother experience.

※Important Notice for RT/K Series with TFT Instruments(2021-2023 R1250 RT / 2022-2023 K1600 models / 2022-2023 K1600B):  Simultaneous control occurs across all interfaces of the BMW instrument cluster and CHIGEE Display. We strongly recommend avoiding the CGRC CAN for these models. Instead, opt for the CGRC PRO Remote for compatibility without interference.

※For R 1300 GS & R 1300 GS ADV, Please select the 6-Pin option and insert it into the DWA module (A263*1B). If you wish to keep the BMW Navigator and prefer not to connect the CGRC LIN to the 3-pin navigation interface, the 6-Pin option will be the ideal choice.

Brand -Chigee

Country of Origin: China
Generic Name: Navigation Accessories
Quantity: 1N
Country of Import: China
Warranty: ONE YEAR FROM THE DATE OF INVOICE
Best Use Before: 10 years from date of manufacture
Importer Address: Naila Motors S. No. 28/3B/1P, Opp: Balewadi Stadium, Balewadi, Pune, Maharashtra 411045 Contact Customer Service Manager (at above address) Phone: +91 844 844 9050 Email: customercare@bikenbiker.com
