RAM® Mounts - Universal Backing Plate Mount

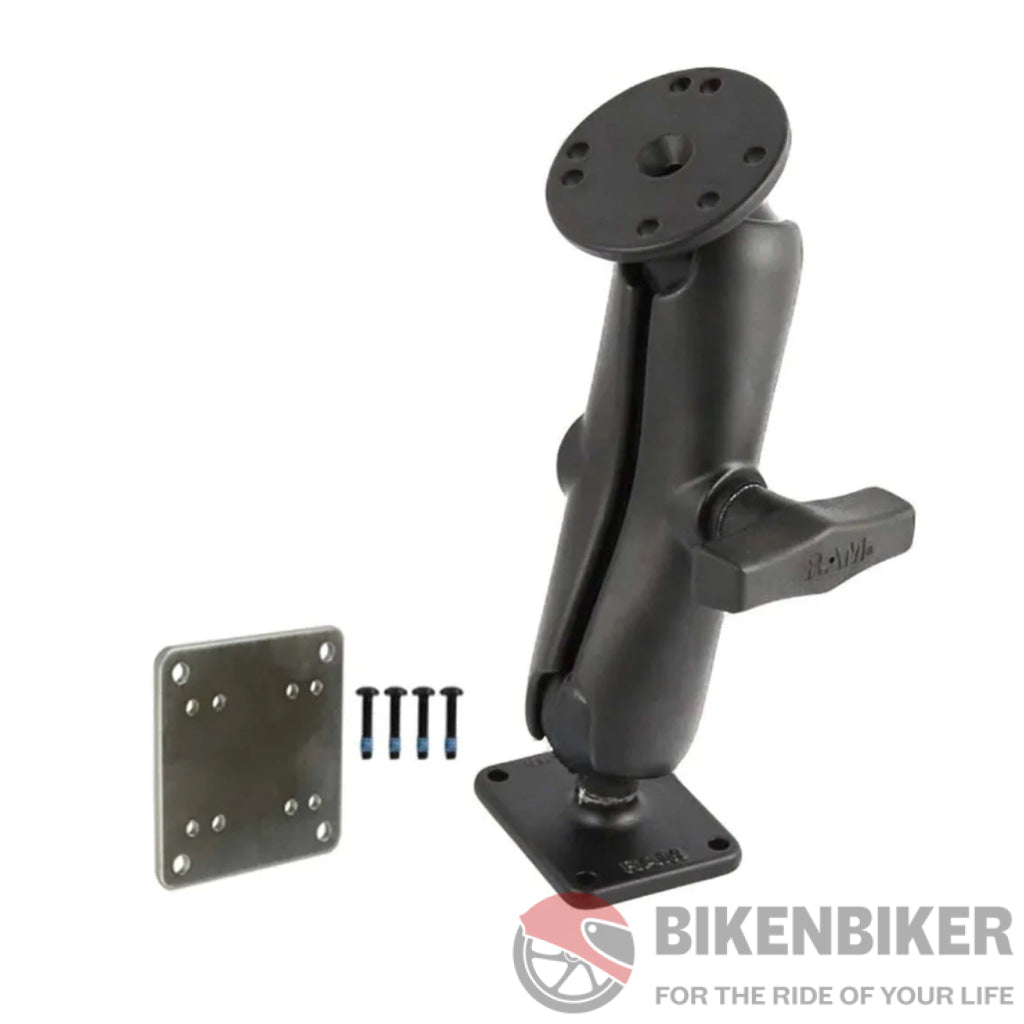

The RAM-101U-225-XAT1, powder coated marine grade aluminum mount, consists of a double socket arm mount, one round 2.5" diameter round base with the universal AMPS hole pattern, and one 2 x 2.5" rectangular base. Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles. For most applications, the mount will support up to ten pounds.

HARDWARE INCLUDED
(1) 3" x 3" Steel Backing Plate
(4) #10-24 x 1" Thread Locking Screws
PRODUCT DIMENSIONS
Overall Height: 7.35"
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
Round Plate:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Rectangular Plate: 1.5" x 2"
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
MATERIALS
Marine-grade aluminum
Steel
WEIGHT
1.47 lbs.



Part No. - RAM-101U-225-XAT1

Brand - RAM® Mounts, USA

Country of Origin: UNITED STATES OF AMERICA
Generic Name: Phone Accessories
Quantity: 1N
Country of Import: UNITED STATES OF AMERICA
Warranty: ONE YEAR FROM DATE OF INVOICE
Best Use Before: 10 years from date of manufacture
Importer Address: Plusgrow Merchantry Pvt Ltd Bharti House, 43 Kachipura, New Ramdaspeth, Nagpur, MH 440010 Contact Customer Service Manager (at above address) Phone: +91 844 844 9050 Email: customercare@bikenbiker.com
